Informatique > Exemples Fast Fourier Transform (FFT) GPU/OpenCL avec clMathLibraries

1.Introduction :

Nous donnons ici des exemples de code pour effectuer des transformées rapides de Fourier (FFT) avec la librairie OpenCL/GPU "clMathLibraries". Tous les sources pour les cas 1D, 2D et 3D sont regroupés dans l'archive suivante :

FFT_OpenCL.tar.gz (testé avec AMD APP SDK 3.0 et clFFT 2.8)

Vous y trouverez également la version FFTW des exemples OpenCL. Voici les différents cas traités :

cas 1D

cas 2D

cas 3D

2.Expression transformation de Fourier :

La formule générale de la transformée de Fourier s'écrit :

\begin{equation} \text{TF}\,[f(\vec{r})]=F(\vec{k})={\large\int}_{-\infty}^{+\infty}\,f(\vec{r})\,e^{-j2\pi\vec{k}\cdot\vec{r}}\,\text{d}\vec{r} \end{equation}

Pour chaque cas ci-dessous, nous appliquons une FFT sur une fonction ou un produit de fonctions cosinus (selon la dimension) discrétisé. Par exemple dans le cas 2D, la fonction à échantillonner est la suivante :

\begin{equation} f(x,y) = \cos(2\pi k_{1}x)\,\cos(2\pi k_{2}y) \end{equation} $\qquad\qquad\qquad$La TF est égale à : \begin{eqnarray} \begin{aligned} \text{TF}\,[f(x,y)]&=F(k_{x},k_{y})={\large\int}_{-\infty}^{+\infty}\,f(x,y)\,e^{-j2\pi\vec{k}\cdot\vec{r}}\,\text{d}\vec{r}\\ &={\large\int}_{-\infty}^{+\infty}{\large\int}_{-\infty}^{+\infty}\,f(x,y)\,e^{-j2\pi k_{x}x}\,e^{-j2\pi k_{y}y}\,\text{d}x\,\text{d}y\\ &={\large\int}_{-\infty}^{+\infty}\cos(2\pi k_{1}x)\,e^{-j2\pi k_{x}x}\,\text{d}x\,{\large\int}_{-\infty}^{+\infty}\cos(2\pi k_{2}y)\,e^{-j2\pi k_{y}y}\,\text{d}y\\ &=\dfrac{1}{4}\big[\delta(k_{x}-k_{1})+\delta(k_{x}+k_{1})\big]\,\big[\delta(k_{y}-k_{2})+\delta(k_{y}+k_{2})\big] \end{aligned} \end{eqnarray}

Nous obtenons alors un produit de fonctions de Dirac, chacune avec une fréquence différente ($k{_1}$ et $k_{2}$). Nous validerons ce résultat dans le cas discret.

cas 1D :

Nous prenons comme exemple un signal cosinus de fréquence 10 Hz et une fréquence d'échantillonnage de 1000 Hz, soit un signal d'entrée échantillonné sur 100 points. Si vous modifiez ces paramètres, veillez à respecter le théorème de Shannon en prenant F_sampling > 2 F_max,signal. Nous appliquons une première FFT puis une FFT inverse pour vérifier que nous retrouvons bien le signal initial.

  1 #include "clFFT.h"
  2 #include <stdio.h>
  3 #include <stdlib.h>
  4 #include <string.h>
  5 #include <math.h>
  6
  7 /////////////////////////////////////
  8 // OpenCL FFT 1D function ///////////
  9 /////////////////////////////////////
10
11 int FFT_1D_OpenCL(float *tab[], const char* direction, int size) {
12
13  // Index
14  int i;
15
16  // OpenCL variables
17  cl_int err;
18  cl_platform_id platform = 0;
19  cl_device_id device = 0;
20  cl_context ctx = 0;
21  cl_command_queue queue = 0;
22
23  // Input and Output buffer
24  cl_mem buffersIn[2]  = {0, 0};
25  cl_mem buffersOut[2] = {0, 0};
26
27  // Temporary buffer
28  cl_mem tmpBuffer = 0;
29
30  // Size of temp buffer
31  size_t tmpBufferSize = 0;
32  int status = 0;
33  int ret = 0;
34
35  // Size of FFT
36  size_t N = size;
37
38  // FFT library realted declarations
39  clfftPlanHandle planHandle;
40  clfftDim dim = CLFFT_1D;
41  size_t clLengths[1] = {N};
42
43  // Setup OpenCL environment
44  err = clGetPlatformIDs(1, &platform, NULL);
45  err = clGetDeviceIDs(platform, CL_DEVICE_TYPE_GPU, 1, &device, NULL);
46
47  // Create an OpenCL context
48  ctx = clCreateContext(NULL, 1, &device, NULL, NULL, &err);
49
50  // Create a command queue
51  queue = clCreateCommandQueueWithProperties(ctx, device, 0, &err);
52
53  // Setup clFFT
54  clfftSetupData fftSetup;
55  err = clfftInitSetupData(&fftSetup);
56  err = clfftSetup(&fftSetup);
57
58  // Create a default plan for a complex FFT
59  err = clfftCreateDefaultPlan(&planHandle, ctx, dim, clLengths);
60
61  // Set plan parameters
62  err = clfftSetPlanPrecision(planHandle, CLFFT_SINGLE);
63  err = clfftSetLayout(planHandle, CLFFT_COMPLEX_PLANAR, CLFFT_COMPLEX_PLANAR);
64  err = clfftSetResultLocation(planHandle, CLFFT_OUTOFPLACE);
65
66  // Bake the plan
67  err = clfftBakePlan(planHandle, 1, &queue, NULL, NULL);
68
69  // Real and Imaginary arrays
70  cl_float* inReal  = (cl_float*) malloc (N * sizeof (cl_float));
71  cl_float* inImag  = (cl_float*) malloc (N * sizeof (cl_float));
72  cl_float* outReal = (cl_float*) malloc (N * sizeof (cl_float));
73  cl_float* outImag = (cl_float*) malloc (N * sizeof (cl_float));
74
75  // Initialization of inReal, inImag, outReal and outImag
76  for(i=0; i<N; i++)
77  {
78   inReal[i]  = tab[0][i];
79   inImag[i]  = 0.0f;
80   outReal[i] = 0.0f;
81   outImag[i] = 0.0f;
82  }
83
84  // Create temporary buffer
85  status = clfftGetTmpBufSize(planHandle, &tmpBufferSize);
86
87  if ((status == 0) && (tmpBufferSize > 0)) {
88   tmpBuffer = clCreateBuffer(ctx, CL_MEM_READ_WRITE, tmpBufferSize, 0, &err);
89   if (err != CL_SUCCESS)
90    printf("Error with tmpBuffer clCreateBuffer\n");
91  }
92
93  // Prepare OpenCL memory objects : create buffer for input
94  buffersIn[0] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR,
95    N * sizeof(cl_float), inReal, &err);
96  if (err != CL_SUCCESS)
97   printf("Error with buffersIn[0] clCreateBuffer\n");
98
99  // Enqueue write tab array into buffersIn[0]
100  err = clEnqueueWriteBuffer(queue, buffersIn[0], CL_TRUE, 0, N *
101    sizeof(float),
102    inReal, 0, NULL, NULL);
103  if (err != CL_SUCCESS)
104   printf("Error with buffersIn[0] clEnqueueWriteBuffer\n");
105
106  // Prepare OpenCL memory objects : create buffer for input
107  buffersIn[1] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR,
108    N * sizeof(cl_float), inImag, &err);
109  if (err != CL_SUCCESS)
110   printf("Error with buffersIn[1] clCreateBuffer\n");
111
112  // Enqueue write tab array into buffersIn[1]
113  err = clEnqueueWriteBuffer(queue, buffersIn[1], CL_TRUE, 0, N * sizeof(float),
114    inImag, 0, NULL, NULL);
115  if (err != CL_SUCCESS)
116   printf("Error with buffersIn[1] clEnqueueWriteBuffer\n");
117
118  // Prepare OpenCL memory objects : create buffer for output
119  buffersOut[0] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR, N *
120    sizeof(cl_float), outReal, &err);
121  if (err != CL_SUCCESS)
122   printf("Error with buffersOut[0] clCreateBuffer\n");
123
124  buffersOut[1] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR, N *
125    sizeof(cl_float), outImag, &err);
126  if (err != CL_SUCCESS)
127   printf("Error with buffersOut[1] clCreateBuffer\n");
128
129  // Execute Forward or Backward FFT
130  if(strcmp(direction,"forward") == 0)
131  {
132   // Execute the plan
133   err = clfftEnqueueTransform(planHandle, CLFFT_FORWARD, 1, &queue, 0, NULL, NULL,
134     buffersIn, buffersOut, tmpBuffer);
135  }
136  else if(strcmp(direction,"backward") == 0)
137  {
138   // Execute the plan
139   err = clfftEnqueueTransform(planHandle, CLFFT_BACKWARD, 1, &queue, 0, NULL, NULL,
140     buffersIn, buffersOut, tmpBuffer);
141  }
142
143  // Wait for calculations to be finished
144  err = clFinish(queue);
145
146  // Fetch results of calculations : Real and Imaginary
147  err = clEnqueueReadBuffer(queue, buffersOut[0], CL_TRUE, 0, N * sizeof(float), tab[0],
148    0, NULL, NULL);
149  err = clEnqueueReadBuffer(queue, buffersOut[1], CL_TRUE, 0, N * sizeof(float), tab[1],
150    0, NULL, NULL);
151
152  // Release OpenCL memory objects
153  clReleaseMemObject(buffersIn[0]);
154  clReleaseMemObject(buffersIn[1]);
155  clReleaseMemObject(buffersOut[0]);
156  clReleaseMemObject(buffersOut[1]);
157  clReleaseMemObject(tmpBuffer);
158
159  // Release the plan
160  err = clfftDestroyPlan(&planHandle);
161
162  // Release clFFT library
163  clfftTeardown();
164
165  // Release OpenCL working objects
166  clReleaseCommandQueue(queue);
167  clReleaseContext(ctx);
168
169  return ret;
170 }
171
172 int main(void) {
173
174  // Index
175  int i;
176
177  // Signal array and FFT output array
178  float *Array[2];
179
180  // Number of sampling points
181  int size = 100;
182
183  // Cumulative time
184  float h = 0;
185
186  // Signal frequency
187  float frequency_signal = 10;
188
189  // Sampling frequency : points between 0 and T_signal
190  float frequency_sampling = size*frequency_signal;
191
192  // Step = T_sampling
193  float step = 1.0/frequency_sampling;
194
195  // File for saving outputs
196  FILE *FFT_1D;
197
198  // Allocation of Array
199  Array[0] = (float*) malloc(size*sizeof(float));
200  Array[1] = (float*) malloc(size*sizeof(float));
201
202  // Initialization of 1D ArrayInput
203  FFT_1D = fopen("FFT_1D_OpenCL_Input.dat","w");
204  for(i=0; i<size; i++)
205  {
206   Array[0][i] = cos(2*M_PI*frequency_signal*h);
207   Array[1][i] = 0.0f;
208   fprintf(FFT_1D,"%f %e\n",i/(frequency_signal*size),Array[0][i]);
209   h = h + step;
210  }
211  fclose(FFT_1D);
212
213  // Perform Forward FFT
214  if (FFT_1D_OpenCL(Array,"forward", size) == 0)
215   printf("FFT passed !\n");
216
217  // Save Output Array
218  FFT_1D = fopen("FFT_1D_OpenCL_Forward.dat","w");
219  for (i=0; i<size; i++)
220   fprintf(FFT_1D,"%f %e\n", i*frequency_sampling/size, Array[0][i]);
221  fclose(FFT_1D);
222
223  // Perform Backward FFT
224  if (FFT_1D_OpenCL(Array,"backward", size) == 0)
225   printf("IFFT passed !\n");
226
227  // Save Output Array
228  FFT_1D = fopen("FFT_1D_OpenCL_Backward.dat","w");
229  for (i=0; i<size; i++)
230   fprintf(FFT_1D,"%f %e\n", i/(size*frequency_signal), Array[0][i]);
231  fclose(FFT_1D);
232
233  return 0;
234 }

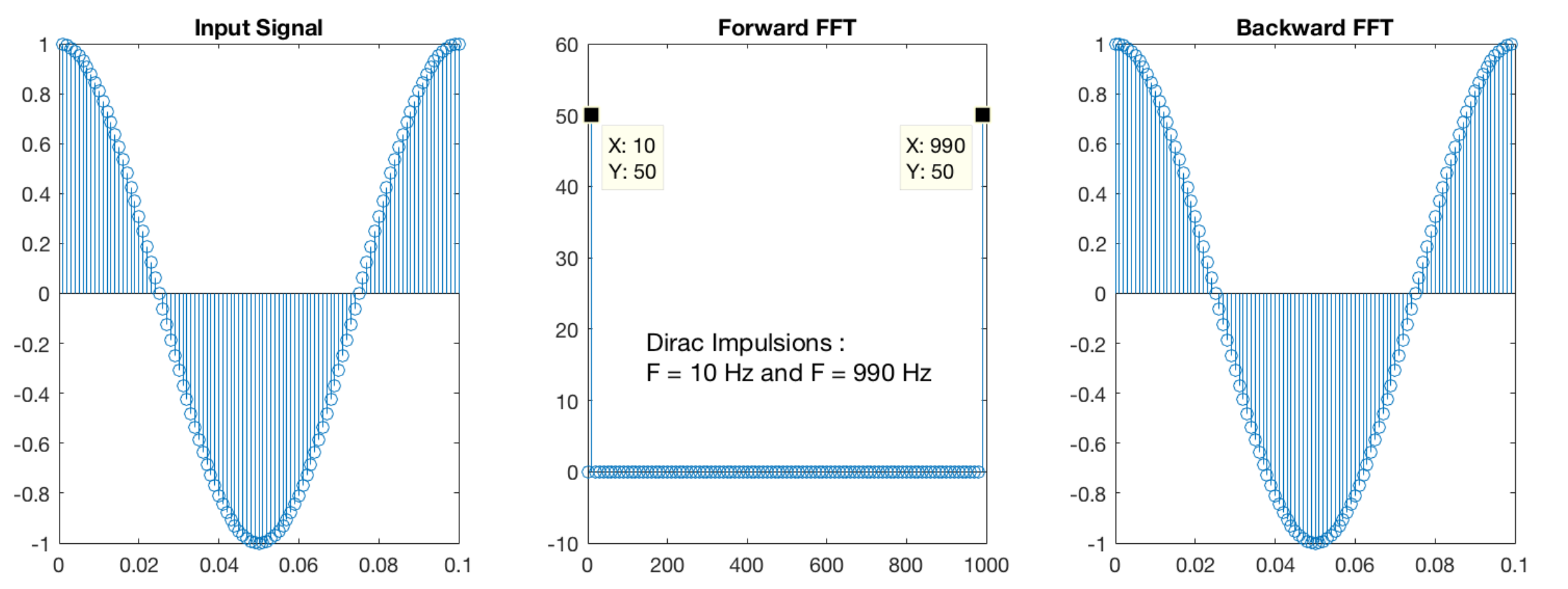

Sur la figure suivante, le plot via le script plot_fft1d.m des 3 opérations : le signal d'entrée, son spectre et le signal de sortie après la tranformée inverse de la première FFT :

En ce qui concerne le spectre, nous retrouvons bien les impulsions de Dirac à F = 10Hz et F = F_sampling - 10 = 990Hz. La figure de droite nous confirme aussi la bonne opération de transformée inverse car le signal obtenu correspond à celui de départ.

cas 2D :

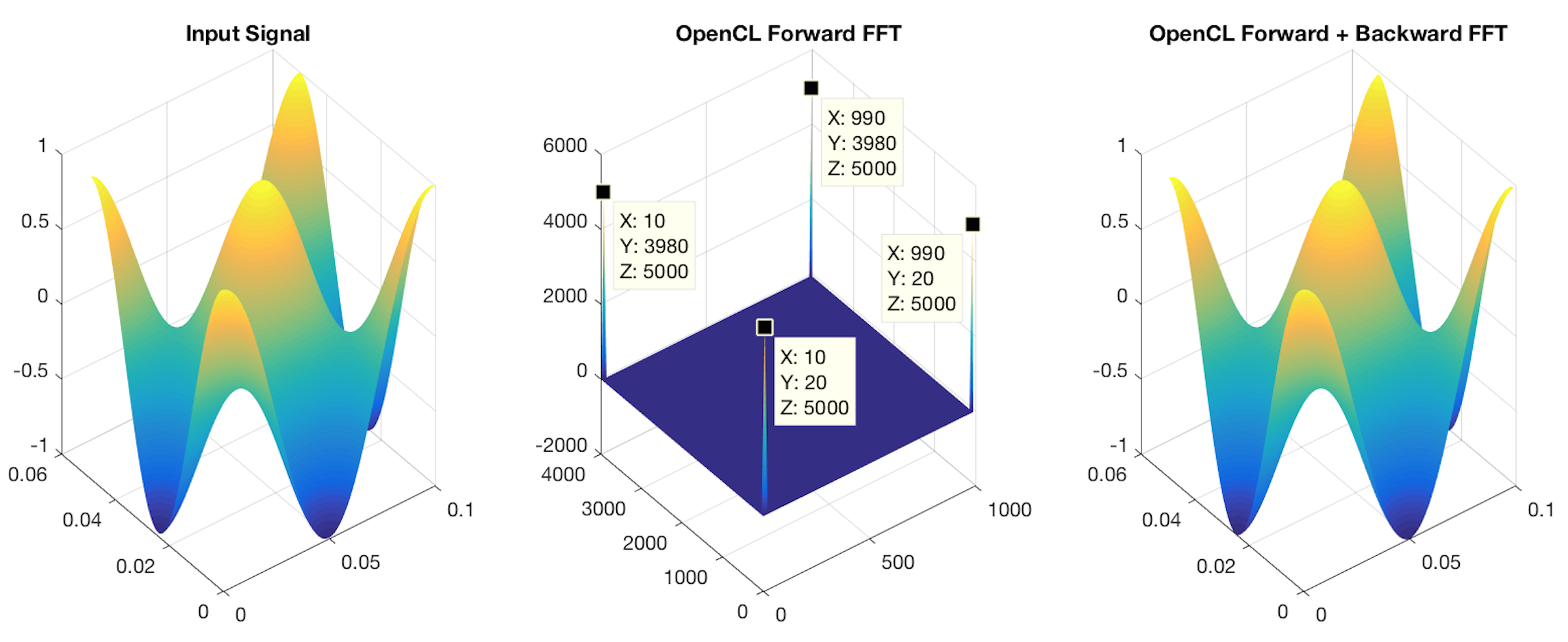

En suivant un exemple similaire au cas 1D, nous prenons ici un signal cosinus 2D (produit de 2 cosinus) avec une fréquence de 10 Hz selon x et 20 Hz selon y, ainsi qu'une fréquence d'échantillonnage respective de 1000 Hz et 4000 Hz. Voici le code :

  1 #include "clFFT.h"
  2 #include <stdio.h>
  3 #include <stdlib.h>
  4 #include <string.h>
  5 #include <math.h>
  6
  7 /////////////////////////////////////
  8 // OpenCL FFT 2D function ///////////
  9 /////////////////////////////////////
10
11 int FFT_2D_OpenCL(float *tab[], const char* direction, int sizex, int sizey) {
12
13  // Index
14  int i;
15
16  // OpenCL variables
17  cl_int err;
18  cl_platform_id platform = 0;
19  cl_device_id device = 0;
20  cl_context ctx = 0;
21  cl_command_queue queue = 0;
22
23  // Input and Output buffer
24  cl_mem buffersIn[2]  = {0, 0};
25  cl_mem buffersOut[2] = {0, 0};
26
27  // Temporary buffer
28  cl_mem tmpBuffer = 0;
29
30  // Size of temp buffer
31  size_t tmpBufferSize = 0;
32  int status = 0;
33  int ret = 0;
34
35  // Total size of FFT
36  size_t N = sizex*sizey;
37
38  // FFT library realted declarations
39  clfftPlanHandle planHandle;
40  clfftDim dim = CLFFT_2D;
41  size_t clLengths[2] = {sizex, sizey};
42
43  // Setup OpenCL environment
44  err = clGetPlatformIDs(1, &platform, NULL);
45  err = clGetDeviceIDs(platform, CL_DEVICE_TYPE_GPU, 1, &device, NULL);
46
47  // Create an OpenCL context
48  ctx = clCreateContext(NULL, 1, &device, NULL, NULL, &err);
49
50  // Create a command queue
51  queue = clCreateCommandQueueWithProperties(ctx, device, 0, &err);
52
53  // Setup clFFT
54  clfftSetupData fftSetup;
55  err = clfftInitSetupData(&fftSetup);
56  err = clfftSetup(&fftSetup);
57
58  // Create a default plan for a complex FFT
59  err = clfftCreateDefaultPlan(&planHandle, ctx, dim, clLengths);
60
61  // Set plan parameters
62  err = clfftSetPlanPrecision(planHandle, CLFFT_SINGLE);
63  err = clfftSetLayout(planHandle, CLFFT_COMPLEX_PLANAR, CLFFT_COMPLEX_PLANAR);
64  err = clfftSetResultLocation(planHandle, CLFFT_OUTOFPLACE);
65
66  // Bake the plan
67  err = clfftBakePlan(planHandle, 1, &queue, NULL, NULL);
68
69  // Real and Imaginary arrays
70  cl_float* inReal  = (cl_float*) malloc (N * sizeof (cl_float));
71  cl_float* inImag  = (cl_float*) malloc (N * sizeof (cl_float));
72  cl_float* outReal = (cl_float*) malloc (N * sizeof (cl_float));
73  cl_float* outImag = (cl_float*) malloc (N * sizeof (cl_float));
74
75  // Initialization of inReal, inImag, outReal and outImag
76  for(i=0; i<N; i++)
77  {
78   inReal[i]  = tab[0][i];
79   inImag[i]  = 0.0f;
80   outReal[i] = 0.0f;
81   outImag[i] = 0.0f;
82  }
83
84  // Create temporary buffer
85  status = clfftGetTmpBufSize(planHandle, &tmpBufferSize);
86
87  if ((status == 0) && (tmpBufferSize > 0)) {
88   tmpBuffer = clCreateBuffer(ctx, CL_MEM_READ_WRITE, tmpBufferSize, 0, &err);
89   if (err != CL_SUCCESS)
90    printf("Error with tmpBuffer clCreateBuffer\n");
91  }
92
93  // Prepare OpenCL memory objects : create buffer for input
94  buffersIn[0] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR,
95    N * sizeof(cl_float), inReal, &err);
96  if (err != CL_SUCCESS)
97   printf("Error with buffersIn[0] clCreateBuffer\n");
98
99  // Enqueue write tab array into buffersIn[0]
100  err = clEnqueueWriteBuffer(queue, buffersIn[0], CL_TRUE, 0, N *
101    sizeof(float),
102    inReal, 0, NULL, NULL);
103  if (err != CL_SUCCESS)
104   printf("Error with buffersIn[0] clEnqueueWriteBuffer\n");
105
106  // Prepare OpenCL memory objects : create buffer for input
107  buffersIn[1] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR,
108    N * sizeof(cl_float), inImag, &err);
109  if (err != CL_SUCCESS)
110   printf("Error with buffersIn[1] clCreateBuffer\n");
111
112  // Enqueue write tab array into buffersIn[1]
113  err = clEnqueueWriteBuffer(queue, buffersIn[1], CL_TRUE, 0, N * sizeof(float),
114    inImag, 0, NULL, NULL);
115  if (err != CL_SUCCESS)
116   printf("Error with buffersIn[1] clEnqueueWriteBuffer\n");
117
118  // Prepare OpenCL memory objects : create buffer for output
119  buffersOut[0] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR, N *
120    sizeof(cl_float), outReal, &err);
121  if (err != CL_SUCCESS)
122   printf("Error with buffersOut[0] clCreateBuffer\n");
123
124  buffersOut[1] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR, N *
125    sizeof(cl_float), outImag, &err);
126  if (err != CL_SUCCESS)
127   printf("Error with buffersOut[1] clCreateBuffer\n");
128
129  // Execute Forward or Backward FFT
130  if(strcmp(direction,"forward") == 0)
131  {
132   // Execute the plan
133   err = clfftEnqueueTransform(planHandle, CLFFT_FORWARD, 1, &queue, 0, NULL, NULL,
134     buffersIn, buffersOut, tmpBuffer);
135  }
136  else if(strcmp(direction,"backward") == 0)
137  {
138   // Execute the plan
139   err = clfftEnqueueTransform(planHandle, CLFFT_BACKWARD, 1, &queue, 0, NULL, NULL,
140     buffersIn, buffersOut, tmpBuffer);
141  }
142
143  // Wait for calculations to be finished
144  err = clFinish(queue);
145
146  // Fetch results of calculations : Real and Imaginary
147  err = clEnqueueReadBuffer(queue, buffersOut[0], CL_TRUE, 0, N * sizeof(float), tab[0],
148    0, NULL, NULL);
149  err = clEnqueueReadBuffer(queue, buffersOut[1], CL_TRUE, 0, N * sizeof(float), tab[1],
150    0, NULL, NULL);
151
152  // Release OpenCL memory objects
153  clReleaseMemObject(buffersIn[0]);
154  clReleaseMemObject(buffersIn[1]);
155  clReleaseMemObject(buffersOut[0]);
156  clReleaseMemObject(buffersOut[1]);
157  clReleaseMemObject(tmpBuffer);
158
159  // Release the plan
160  err = clfftDestroyPlan(&planHandle);
161
162  // Release clFFT library
163  clfftTeardown();
164
165  // Release OpenCL working objects
166  clReleaseCommandQueue(queue);
167  clReleaseContext(ctx);
168
169  return ret;
170 }
171
172 int main(void) {
173
174  // Indices
175  int i,j;
176
177  // Signal array and FFT output array
178  float *Array[2];
179
180  // Number of sampling points
181  int sizex = 100;
182  int sizey = 200;
183
184  // Total size of FFT
185  int N = sizex*sizey;
186
187  // Cumulative time
188  float hx = 0;
189  float hy = 0;
190
191  // Signal frequency
192  float frequency_signalx = 10;
193  float frequency_signaly = 20;
194
195  // Sampling frequency : points between 0 and T_signal
196  float frequency_samplingx = sizex*frequency_signalx;
197  float frequency_samplingy = sizey*frequency_signaly;
198
199  // Step = T_sampling
200  float stepx = 1.0/frequency_samplingx;
201  float stepy = 1.0/frequency_samplingy;
202
203  // File for saving outputs
204  FILE *FFT_2D;
205
206  // Allocation of Array
207  Array[0] = (float*) malloc(N*sizeof(float));
208  Array[1] = (float*) malloc(N*sizeof(float));
209
210  // Initialization of 2D (real + imaginary) ArrayInput
211  FFT_2D = fopen("FFT_2D_OpenCL_Input.dat","w");
212  for(j=0; j<sizey; j++)
213  {
214   for(i=0; i<sizex; i++)
215   {
216    Array[0][j*sizex+i] = cos(2*M_PI*frequency_signalx*hx)*
217     cos(2*M_PI*frequency_signaly*hy);
218    Array[1][j*sizex+i] = 0.0f;
219    fprintf(FFT_2D,"%f %f %e\n", i/(frequency_signalx*sizex),
220      j/(frequency_signaly*sizey),
221      Array[0][j*sizex+i]);
222    hx = hx + stepx;
223   }
224   hx = 0.0f;
225   hy = hy + stepy;
226  }
227  fclose(FFT_2D);
228
229  // Perform Forward FFT
230  if (FFT_2D_OpenCL(Array,"forward", sizex, sizey) == 0)
231   printf("FFT passed !\n");
232
233  // Save Output Array
234  FFT_2D = fopen("FFT_2D_OpenCL_Forward.dat","w");
235  for(j=0; j<sizey; j++)
236   for(i=0; i<sizex; i++)
237    fprintf(FFT_2D,"%f %f %e\n", i*frequency_samplingx/sizex,
238      j*frequency_samplingy/sizey,
239      Array[0][j*sizex+i]);
240  fclose(FFT_2D);
241
242  // Perform Backward FFT
243  if (FFT_2D_OpenCL(Array,"backward", sizex, sizey) == 0)
244   printf("IFFT passed !\n");
245
246  // Save Output Array
247  FFT_2D = fopen("FFT_2D_OpenCL_Backward.dat","w");
248  for(j=0; j<sizey; j++)
249   for(i=0; i<sizex; i++)
250    fprintf(FFT_2D,"%f %f %e\n", i/(frequency_signalx*sizex),
251      j/(frequency_signaly*sizey),
252      Array[0][j*sizex+i]);
253  fclose(FFT_2D);
254
255  return 0;
256 }

Sur la figure suivante, le plot via le script plot_fft2d.m des 3 opérations : le signal d'entrée, son spectre et le signal de sortie après la tranformée inverse de la première FFT :

Nous voyons sur la figure du milieu les pics de Dirac correspondant au produit de deux Dirac, l'un placé sur 10Hz et l'autre sur 20Hz ainsi que les autres impulsions situées en F_x,sampling - F_x,signal et F_y,sampling - F_y,signal. La figure de droite nous confirme aussi la bonne opération de transformée inverse car le signal obtenu correspond de nouveau à celui de départ.

cas 3D :

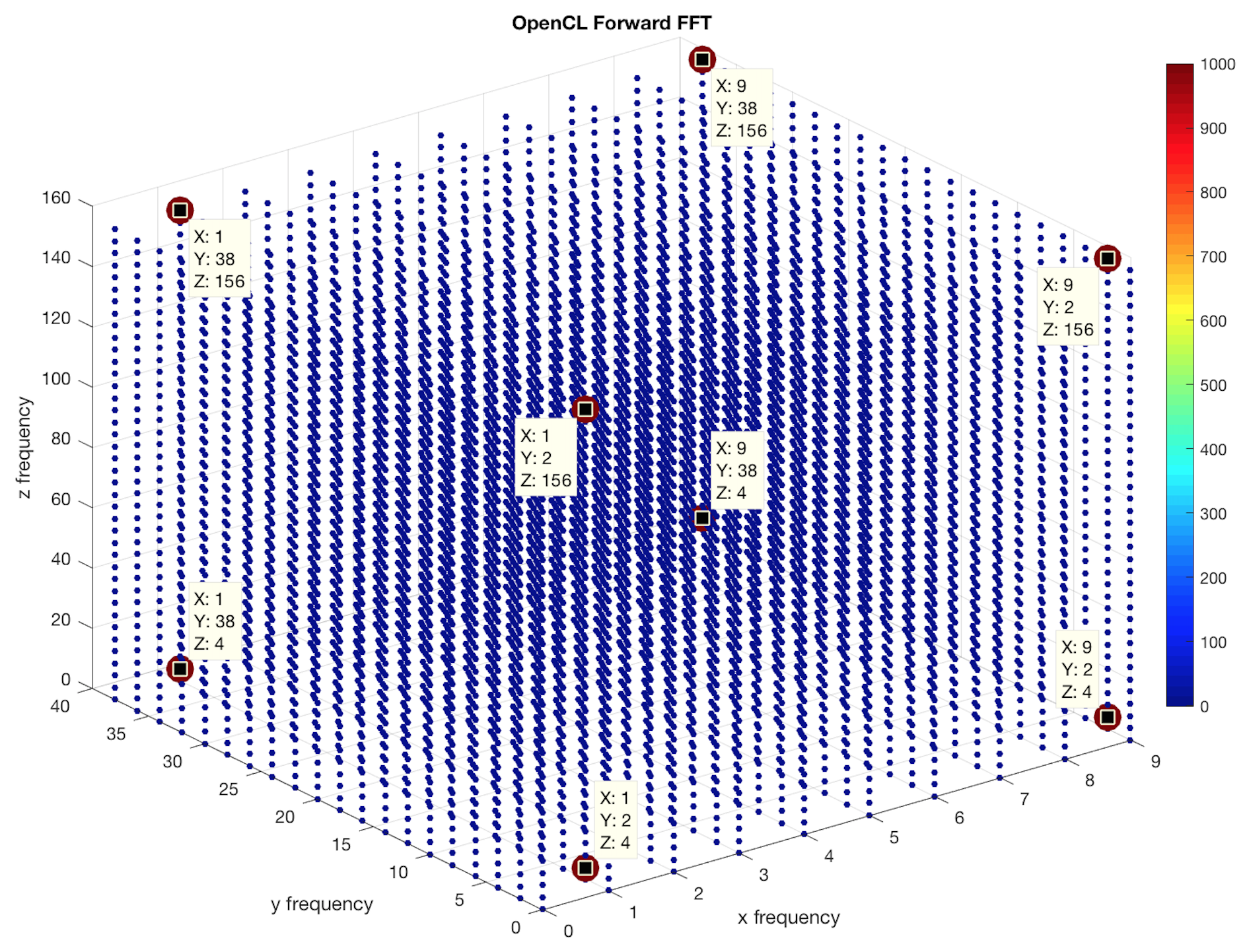

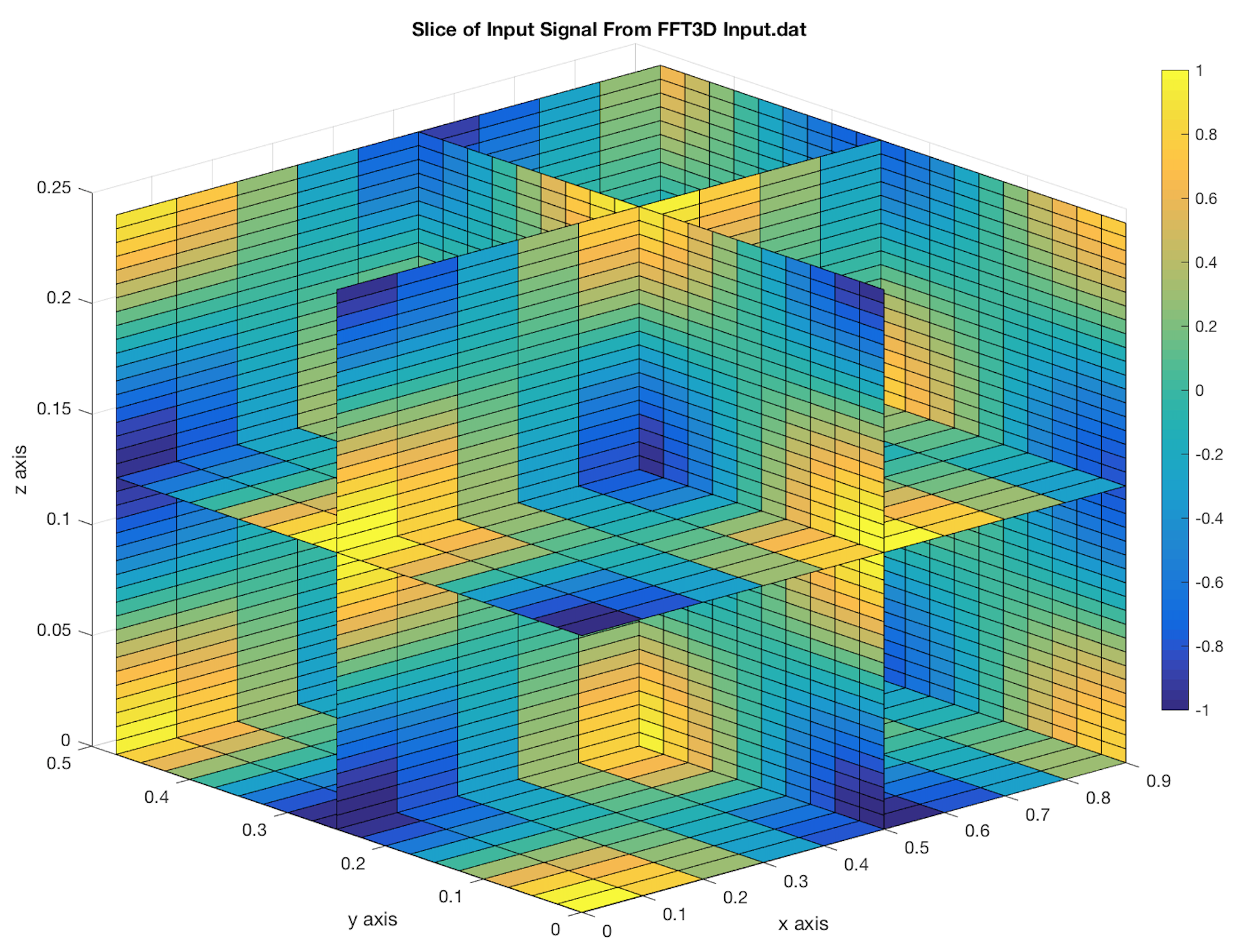

Pour finir avec le cas 3D, nous appliquons une FFT à un signal cosinus 3D (produit de 3 cosinus) de fréquences 1Hz, 2Hz et 4Hz avec des fréquences d'échantillonnage de 10Hz, 40Hz et 160Hz selon respectivement les directions Ox, Oy et Oz. Ci-dessous le code du cas 3D :

  1 #include "clFFT.h"
  2 #include <stdio.h>
  3 #include <stdlib.h>
  4 #include <string.h>
  5 #include <math.h>
  6
  7 /////////////////////////////////////
  8 // OpenCL FFT 3D function ///////////
  9 /////////////////////////////////////
10
11 int FFT_3D_OpenCL(float *tab[], const char* direction, int sizex, int sizey, int sizez) {
12
13  // Index
14  int i;
15
16  // OpenCL variables
17  cl_int err;
18  cl_platform_id platform = 0;
19  cl_device_id device = 0;
20  cl_context ctx = 0;
21  cl_command_queue queue = 0;
22
23  // Input and Output buffer
24  cl_mem buffersIn[2]  = {0, 0};
25  cl_mem buffersOut[2] = {0, 0};
26
27  // Temporary buffer
28  cl_mem tmpBuffer = 0;
29
30  // Size of temp buffer
31  size_t tmpBufferSize = 0;
32  int status = 0;
33  int ret = 0;
34
35  // Total size of FFT
36  size_t N = sizex*sizey*sizez;
37
38  // FFT library realted declarations
39  clfftPlanHandle planHandle;
40  clfftDim dim = CLFFT_3D;
41  size_t clLengths[3] = {sizex, sizey, sizez};
42
43  // Setup OpenCL environment
44  err = clGetPlatformIDs(1, &platform, NULL);
45  err = clGetDeviceIDs(platform, CL_DEVICE_TYPE_GPU, 1, &device, NULL);
46
47  // Create an OpenCL context
48  ctx = clCreateContext(NULL, 1, &device, NULL, NULL, &err);
49
50  // Create a command queue
51  queue = clCreateCommandQueueWithProperties(ctx, device, 0, &err);
52
53  // Setup clFFT
54  clfftSetupData fftSetup;
55  err = clfftInitSetupData(&fftSetup);
56  err = clfftSetup(&fftSetup);
57
58  // Create a default plan for a complex FFT
59  err = clfftCreateDefaultPlan(&planHandle, ctx, dim, clLengths);
60
61  // Set plan parameters
62  err = clfftSetPlanPrecision(planHandle, CLFFT_SINGLE);
63  err = clfftSetLayout(planHandle, CLFFT_COMPLEX_PLANAR, CLFFT_COMPLEX_PLANAR);
64  err = clfftSetResultLocation(planHandle, CLFFT_OUTOFPLACE);
65
66  // Bake the plan
67  err = clfftBakePlan(planHandle, 1, &queue, NULL, NULL);
68
69  // Real and Imaginary arrays
70  cl_float* inReal  = (cl_float*) malloc (N * sizeof (cl_float));
71  cl_float* inImag  = (cl_float*) malloc (N * sizeof (cl_float));
72  cl_float* outReal = (cl_float*) malloc (N * sizeof (cl_float));
73  cl_float* outImag = (cl_float*) malloc (N * sizeof (cl_float));
74
75  // Initialization of inReal, inImag, outReal and outImag
76  for(i=0; i<N; i++)
77  {
78   inReal[i]  = tab[0][i];
79   inImag[i]  = 0.0f;
80   outReal[i] = 0.0f;
81   outImag[i] = 0.0f;
82  }
83
84  // Create temporary buffer
85  status = clfftGetTmpBufSize(planHandle, &tmpBufferSize);
86
87  if ((status == 0) && (tmpBufferSize > 0)) {
88   tmpBuffer = clCreateBuffer(ctx, CL_MEM_READ_WRITE, tmpBufferSize, 0, &err);
89   if (err != CL_SUCCESS)
90    printf("Error with tmpBuffer clCreateBuffer\n");
91  }
92
93  // Prepare OpenCL memory objects : create buffer for input
94  buffersIn[0] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR,
95    N * sizeof(cl_float), inReal, &err);
96  if (err != CL_SUCCESS)
97   printf("Error with buffersIn[0] clCreateBuffer\n");
98
99  // Enqueue write tab array into buffersIn[0]
100  err = clEnqueueWriteBuffer(queue, buffersIn[0], CL_TRUE, 0, N *
101    sizeof(float),
102    inReal, 0, NULL, NULL);
103  if (err != CL_SUCCESS)
104   printf("Error with buffersIn[0] clEnqueueWriteBuffer\n");
105
106  // Prepare OpenCL memory objects : create buffer for input
107  buffersIn[1] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR,
108    N * sizeof(cl_float), inImag, &err);
109  if (err != CL_SUCCESS)
110   printf("Error with buffersIn[1] clCreateBuffer\n");
111
112  // Enqueue write tab array into buffersIn[1]
113  err = clEnqueueWriteBuffer(queue, buffersIn[1], CL_TRUE, 0, N * sizeof(float),
114    inImag, 0, NULL, NULL);
115  if (err != CL_SUCCESS)
116   printf("Error with buffersIn[1] clEnqueueWriteBuffer\n");
117
118  // Prepare OpenCL memory objects : create buffer for output
119  buffersOut[0] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR, N *
120    sizeof(cl_float), outReal, &err);
121  if (err != CL_SUCCESS)
122   printf("Error with buffersOut[0] clCreateBuffer\n");
123
124  buffersOut[1] = clCreateBuffer(ctx, CL_MEM_READ_WRITE | CL_MEM_COPY_HOST_PTR, N *
125    sizeof(cl_float), outImag, &err);
126  if (err != CL_SUCCESS)
127   printf("Error with buffersOut[1] clCreateBuffer\n");
128
129  // Execute Forward or Backward FFT
130  if(strcmp(direction,"forward") == 0)
131  {
132   // Execute the plan
133   err = clfftEnqueueTransform(planHandle, CLFFT_FORWARD, 1, &queue, 0, NULL, NULL,
134     buffersIn, buffersOut, tmpBuffer);
135  }
136  else if(strcmp(direction,"backward") == 0)
137  {
138   // Execute the plan
139   err = clfftEnqueueTransform(planHandle, CLFFT_BACKWARD, 1, &queue, 0, NULL, NULL,
140     buffersIn, buffersOut, tmpBuffer);
141  }
142
143  // Wait for calculations to be finished
144  err = clFinish(queue);
145
146  // Fetch results of calculations : Real and Imaginary
147  err = clEnqueueReadBuffer(queue, buffersOut[0], CL_TRUE, 0, N * sizeof(float), tab[0],
148    0, NULL, NULL);
149  err = clEnqueueReadBuffer(queue, buffersOut[1], CL_TRUE, 0, N * sizeof(float), tab[1],
150    0, NULL, NULL);
151
152  // Release OpenCL memory objects
153  clReleaseMemObject(buffersIn[0]);
154  clReleaseMemObject(buffersIn[1]);
155  clReleaseMemObject(buffersOut[0]);
156  clReleaseMemObject(buffersOut[1]);
157  clReleaseMemObject(tmpBuffer);
158
159  // Release the plan
160  err = clfftDestroyPlan(&planHandle);
161
162  // Release clFFT library
163  clfftTeardown();
164
165  // Release OpenCL working objects
166  clReleaseCommandQueue(queue);
167  clReleaseContext(ctx);
168
169  return ret;
170 }
171
172 int main(void) {
173
174  // Indices
175  int i,j,k;
176
177  // Signal array and FFT output array
178  float *Array[2];
179
180  // Number of sampling points
181  int sizex = 10;
182  int sizey = 20;
183  int sizez = 40;
184
185  // Total size of FFT
186  int N = sizex*sizey*sizez;
187
188  // Cumulative time
189  float hx = 0;
190  float hy = 0;
191  float hz = 0;
192
193  // Signal frequency
194  float frequency_signalx = 1;
195  float frequency_signaly = 2;
196  float frequency_signalz = 4;
197
198  // Sampling frequency : points between 0 and T_signal
199  float frequency_samplingx = sizex*frequency_signalx;
200  float frequency_samplingy = sizey*frequency_signaly;
201  float frequency_samplingz = sizez*frequency_signalz;
202
203  // Step = T_sampling
204  float stepx = 1.0/frequency_samplingx;
205  float stepy = 1.0/frequency_samplingy;
206  float stepz = 1.0/frequency_samplingz;
207
208  // File for saving outputs
209  FILE *FFT_3D;
210
211  // Allocation of Array
212  Array[0] = (float*) malloc(N*sizeof(float));
213  Array[1] = (float*) malloc(N*sizeof(float));
214
215  // Initialization of 2D (real + imaginary) ArrayInput
216  FFT_3D = fopen("FFT_3D_OpenCL_Input.dat","w");
217  for(k=0; k<sizez; k++)
218  {
219   for(j=0; j<sizey; j++)
220   {
221    for(i=0; i<sizex; i++)
222    {
223     Array[0][k*sizex*sizey+j*sizex+i] = cos(2*M_PI*frequency_signalx*hx)*
224      cos(2*M_PI*frequency_signaly*hy)*
225      cos(2*M_PI*frequency_signalz*hz);
226     Array[1][k*sizex*sizey+j*sizex+i] = 0.0f;
227     fprintf(FFT_3D,"%f %f %f %e\n", i/(frequency_signalx*sizex),
228       j/(frequency_signaly*sizey),
229       k/(frequency_signalz*sizez),
230       Array[0][k*sizex*sizey+j*sizex+i]);
231     hx = hx + stepx;
232    }
233    hx = 0.0f;
234    hy = hy + stepy;
235   }
236   hy=0.0f;
237   hz = hz + stepz;
238  }
239  fclose(FFT_3D);
240
241  // Perform Forward FFT
242  if (FFT_3D_OpenCL(Array,"forward", sizex, sizey, sizez) == 0)
243   printf("FFT passed !\n");
244
245  // Save Output Array
246  FFT_3D = fopen("FFT_3D_OpenCL_Forward.dat","w");
247  for(k=0; k<sizez; k++)
248   for(j=0; j<sizey; j++)
249    for(i=0; i<sizex; i++)
250     fprintf(FFT_3D,"%f %f %f %e\n", i*frequency_samplingx/sizex,
251       j*frequency_samplingy/sizey,
252       k*frequency_samplingz/sizez,
253       Array[0][k*sizex*sizey+j*sizex+i]);
254  fclose(FFT_3D);
255
256  // Perform Backward FFT
257  if (FFT_3D_OpenCL(Array,"backward", sizex, sizey, sizez) == 0)
258   printf("IFFT passed !\n");
259
260  // Save Output Array
261  FFT_3D = fopen("FFT_3D_OpenCL_Backward.dat","w");
262  for(k=0; k<sizez; k++)
263   for(j=0; j<sizey; j++)
264    for(i=0; i<sizex; i++)
265     fprintf(FFT_3D,"%f %f %f %e\n", i/(frequency_signalx*sizex),
266       j/(frequency_signaly*sizey),
267       k/(frequency_signalz*sizez),
268       Array[0][k*sizex*sizey+j*sizex+i]);
269  fclose(FFT_3D);
270
271  return 0;
272 }

Sur les figures suivantes, le plot via le script plot_fft3d.m du signal d'entrée ("slice plot") et de son spectre ("scatter3 plot") :

Nous voyons sur la figure ci-dessus les pics de Dirac correspondant au produit des 3 Dirac, un sur 1Hz, un autre sur 2Hz et le dernier sur 4Hz ainsi que les autres impulsions situées en F_x,sampling - F_x,signal, F_y,sampling - F_y,signal et F_z,sampling - F_z,signal.

La figure ci-dessous nous confirme aussi la bonne opération de transformée inverse car le signal obtenu correspond de nouveau à celui de départ.

ps : contribuez comme moi au projet Cosmology@Home dont le but est d'affiner le modèle décrivant le mieux notre Univers.

Haut de Page
